Ferrite Bead parameter for KL720 power domain

Son NguyenSon Nguyen
in KL720 related discussion

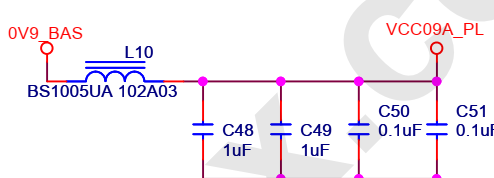

I am copying the power decoupling and filtering section the Demo board rev 03 for our design. Is this the latest version of demo board?

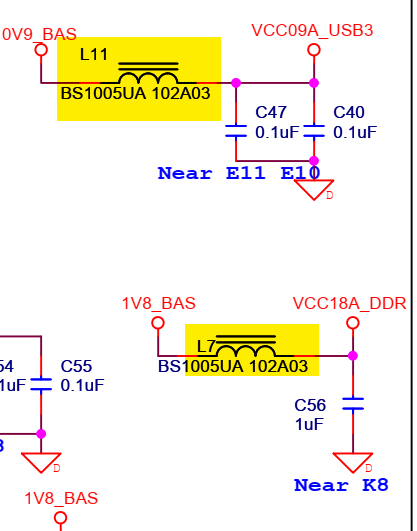

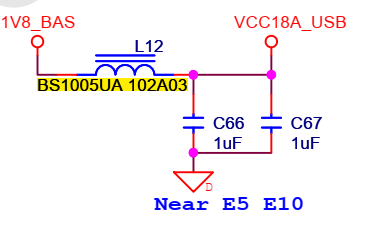

Besides, I could not find information of ferrite bead ( P/N: BS1005UA 102A03 ). Could you provide me recommended parameters of Ferrite bead or any recommended ferrite bead P/N that could be found on market?

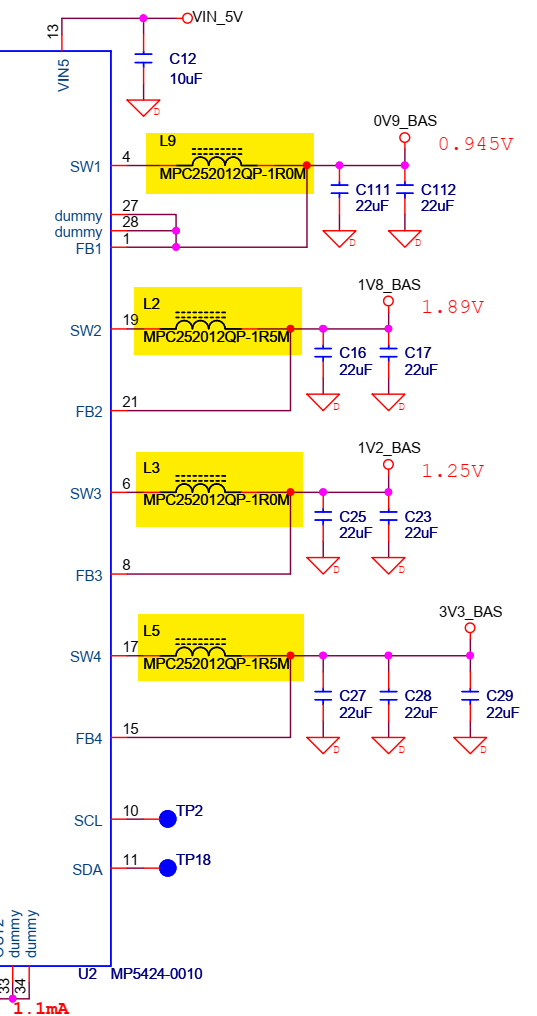

Same as for inductors in the MP5424-0010 power section.
