Camera connector

According to DSN and BOM, the camera connector uses the following Hirose connector: FH34SRJ-36S-0.5SH

36 positions connector.

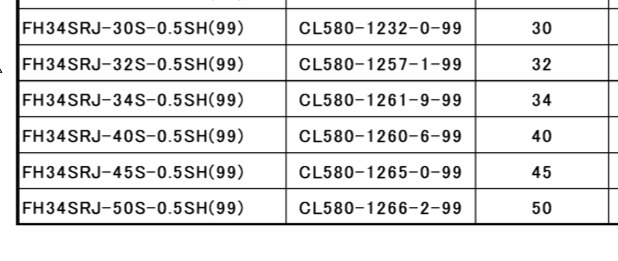

According to Hirose Datasheet this part doesn't exist, the options are 34 or 40 positions.

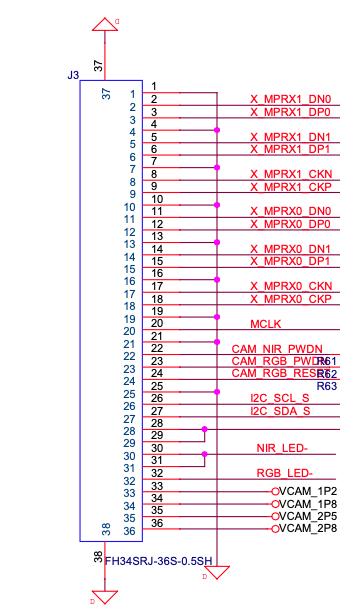

See screenshot attached (Hirose DS and KL720_DMB schematic).

Please clarify which connector is been used, I'm working on a camera module for the evaluation board.


Comments

  • Hi Moti

    We have updated the camera connector, the last used is P/N: BL115H-36RL-TAGF

    and connect window as bleow

    ---------------------------------------------------------------
