ssd_mobilenet_v1 tflite 模型轉換問題 (使用coco dataset 300*300)
1. 看過此社群知道轉換過程要選擇 --add_postprocessing_op=false 與 --inference_type=FLOAT 轉成32-bit tflite model
python3 export_tflite_ssd_graph.py \
--pipeline_config_path=pipeline.config \
--trained_checkpoint_prefix=model.ckpt \
--output_directory=tflite \
--add_postprocessing_op=false
toco \
--graph_def_file=tflite/tflite_graph.pb \
--output_file=toco/ssd_mobilenetv1.tflite \
--input_shapes=1,300,300,3 \
--input_arrays=normalized_input_image_tensor \
--output_arrays='raw_outputs/class_predictions','raw_outputs/box_encodings' \
--inference_type=FLOAT
2. 使用Kneron python 轉換過程 km.evaluate() 會發生問題
(base) root@5d27e181090d:/data1/ssd_mobilenet_v1# python3 ssd_mobilenetv1_tflite_to_nef.py
/workspace/miniconda/lib/python3.7/site-packages/numpy/__init__.py:156: UserWarning: mkl-service package failed to import, therefore Intel(R) MKL initialization ensuring its correct out-of-the box operation under condition when Gnu OpenMP had already been loaded by Python process is not assured. Please install mkl-service package, see http://github.com/IntelPython/mkl-service
from . import _distributor_init
Using TensorFlow backend.
(1) convert tflite model to onnx ====>
(2) setup ktc config ====>
(3) npu(only) performance simulation ====>
running compiler and ipEvaluator...
terminate called after throwing an instance of 'std::runtime_error'
what(): CSim only support CPU node in the end of model and write data to output buffer.
./compilerIpevaluator_720.sh: line 32: 4928 Aborted (core dumped) $LIBS_FOLDER/compiler/compile 720 $model $TMP_FOLDER/config_compiler.json warning compile.log
Traceback (most recent call last):
File "ssd_mobilenetv1_tflite_to_nef.py", line 34, in <module>
eval_result = km.evaluate()
File "/workspace/miniconda/lib/python3.7/site-packages/ktc/toolchain.py", line 130, in evaluate
subprocess.run(['./compilerIpevaluator_720.sh', input_model_path], check=True)
File "/workspace/miniconda/lib/python3.7/subprocess.py", line 512, in run
output=stdout, stderr=stderr)
subprocess.CalledProcessError: Command '['./compilerIpevaluator_720.sh', '/data1/input.onnx']' returned non-zero exit status 1.
3. 略過 km.evaluate() 不執行 可跑到 compile 步驟 才出問題:
(base) root@5d27e181090d:/data1/ssd_mobilenet_v1# python3 ssd_mobilenetv1_tflite_to_nef.py
/workspace/miniconda/lib/python3.7/site-packages/numpy/__init__.py:156: UserWarning: mkl-service package failed to import, therefore Intel(R) MKL initialization ensuring its correct out-of-the box operation under condition when Gnu OpenMP had already been loaded by Python process is not assured. Please install mkl-service package, see http://github.com/IntelPython/mkl-service
from . import _distributor_init
Using TensorFlow backend.
(1) convert tflite model to onnx ====>
(2) setup ktc config ====>
(3) npu(only) performance simulation ====>
(4) onnx model check ====>
(5) fix point analysis ====>
(6) bie model check ====>
(7) compile ====>
[tool][info][batch_compile.cc:561][BatchCompile] compiling output.bie
terminate called after throwing an instance of 'std::runtime_error'
what(): CSim only support CPU node in the end of model and write data to output buffer.
Traceback (most recent call last):
File "ssd_mobilenetv1_tflite_to_nef.py", line 66, in <module>
nef_model_path = ktc.compile([km])
File "/workspace/miniconda/lib/python3.7/site-packages/ktc/toolchain.py", line 173, in compile
return encrypt_compile(model_list, output_dir, dedicated_output_buffer, mode=None, weight_compress=weight_compress, hardware_cut_opt=hardware_cut_opt, flatbuffer=flatbuffer)
File "/workspace/miniconda/lib/python3.7/site-packages/ktc/toolchain.py", line 272, in encrypt_compile
subprocess.run(commands, check=True)
File "/workspace/miniconda/lib/python3.7/subprocess.py", line 512, in run
output=stdout, stderr=stderr)
subprocess.CalledProcessError: Command '['/workspace/libs/compiler/batch_compile', '-T', '720', '/data1/batch_compile/batch_compile_bconfig.json', '-s', '-t', 'kneron/toolchain:v0.17.2\n', '-o']' died with <Signals.SIGABRT: 6>.
(base) root@5d27e181090d:/data1/ssd_mobilenet_v1#
請協助轉換, 是否ssd_mobilenetv1.tflite 需要去除nodes ?
thanks,
Giga
Comments
@GigaHsu
Hi GigaHsu,

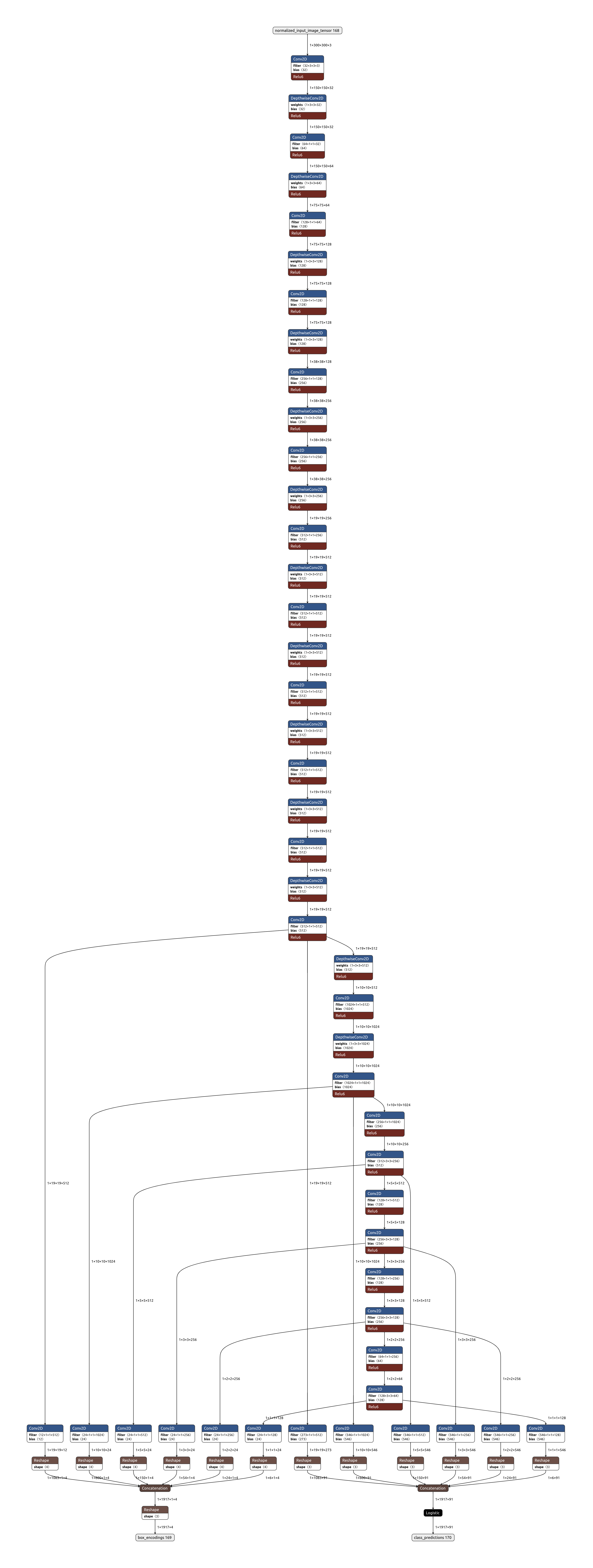

您的 ssd_mobilenetv1.tflite 含有 Kneron 硬體架構不支援的 operators,您必須要去除這些不支援的 operators (如附圖紅線以下),相信您去除之後您的問題都可以解決。
這裡有 Kneron Tool Chain 支援的 operators 給您參考 (2.3 Supported operators)。
http://doc.kneron.com/docs/#toolchain/manual/#2-toolchain-docker-overview
這裡也有提供 Python API 讓您編輯您的 model (1 ONNX Optimizer and Editor)。
http://doc.kneron.com/docs/#toolchain/python_api/
Hi Andy,
去掉紅線以下,可以成功轉出.nef.
待補code 計算mAP accuracy 再找你討論.
thanks,
Giga
